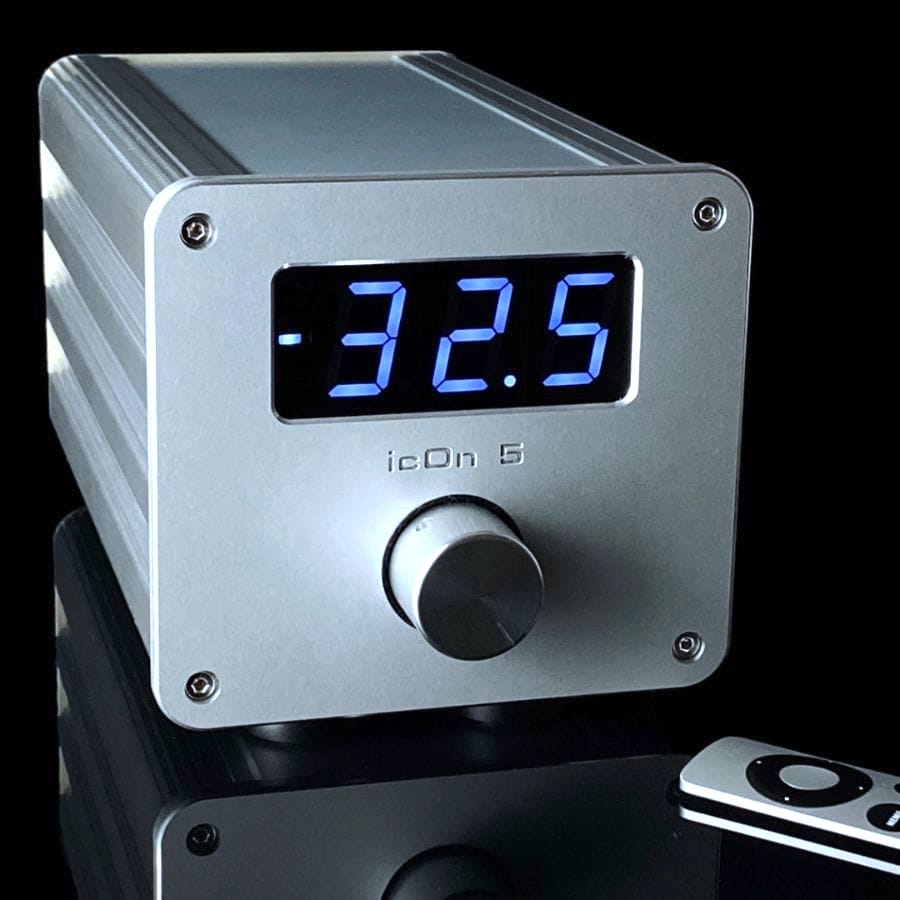

icOn 5 Single-ended
The unit also boasts eight pairs of RCA sockets with customizable functionality for users and has remarkably precise volume adjustment capabilities (spanning 136 steps within an 83 dB range). I find it hard to imagine that I’ll manage to create a superior audio control unit in the future—perhaps only a distinct one. If you need mixed RCA & XLR sockets, there is a version with 2 XLR (with single-ended connection) + 2 RCA inputs and 1 RCA + 1 XLR (can be electronically balanced) outputs as well.
Price range: € 3,759 through € 6,359 ex. VAT
- ✓No payment now – we confirm your order and send an invoice
- ✓Free shipping worldwide from the UK
- ✓2-year warranty · 10-day returns
- ✓Designed and handmade in Manchester
20% VAT applies to UK orders. Outside the UK, local VAT, import duties or fees may be due on delivery. Read the Terms and Conditions
Features:
- unprecedented 136 steps over an 83 dB attenuation range
- 0.5 dB steps from +3 dB to -47 dB with the buffer and 1 dB from -48 dB to -80 dB or without the buffer
- single-ended (unbalanced) operation, but you can connect balanced devices through XLR sockets in the RCA + XLR version

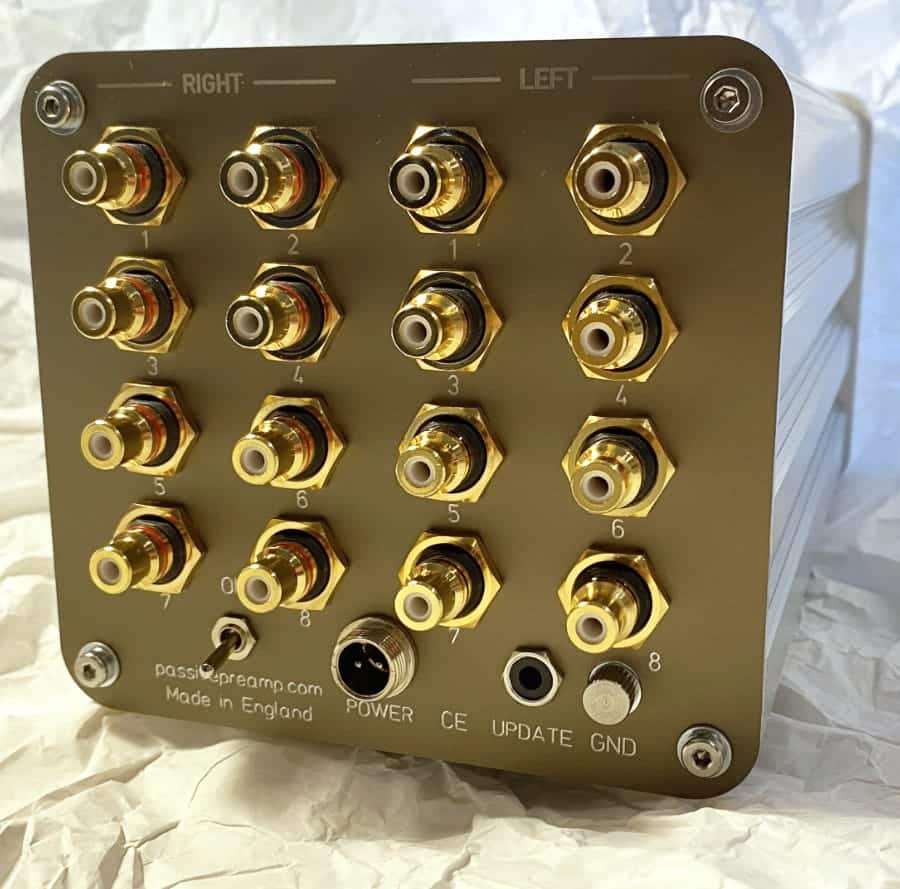

- 8 pair RCA sockets with user reconfigurable functionality
- 6 input & 2 output, 5 input & 3 output, 5 input & 2 output + 1 line output for the RCA only version

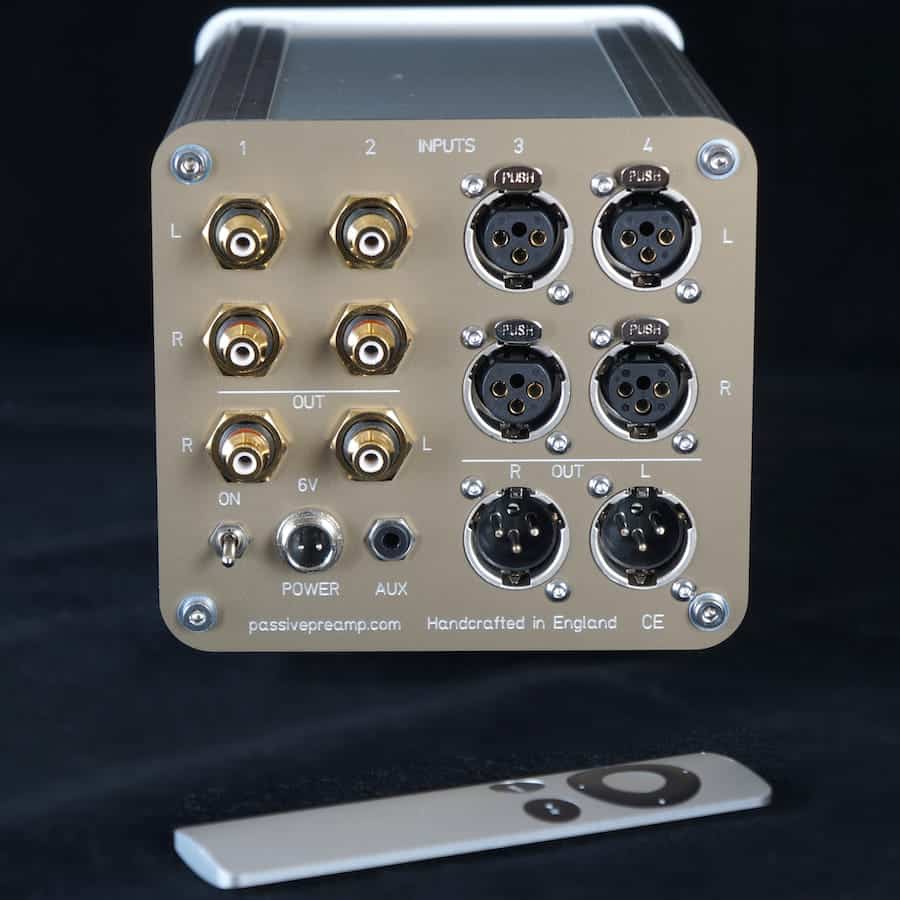

- 2 XLR (with single-ended connection) + 2 RCA input, 1 RCA +1 XLR (can be electronically balanced) output version
- AV bypass optionally
- improved linearity and transparency due to the new, lower inductance autoformers
- the silver winded autoformers are our own production with 80% Ni core
- optional input buffer for the total source compatibility
- FET switches for the autoformer taps' selection
- Max. input level: 8V RMS (22.6 Vpp)
- balance, mute and standby mode
- optional tilt control (defeat-able) with 8x0.5 dB steps for fine-tuning the record and room acoustic imbalances
- remote-controlled output selector
- large (1") 3-digit white or orange display with 2 brightness and night mode
- Apple-compatible CNC machined IR remote controller
- optical encoder and touch button for the manual operations
- 130mm high enclosure (W 134mm x L 260mm)
